PA-Boot: A Formally Verified Authentication Protocol for Multiprocessor Secure Boot under Hardware Supply-chain Attacks

Abstract

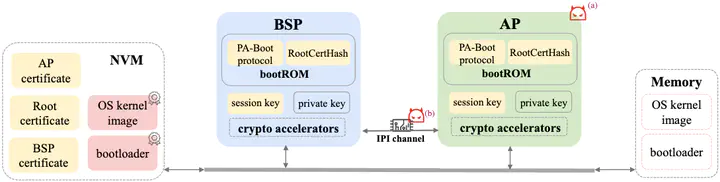

Hardware supply-chain attacks are raising significant security threats to the boot process of multiprocessor systems. In this paper, we investigate critical stages of the multiprocessor system boot process and identify a new, prevalent hardware supply-chain attack surface that can bypass secure boot due to the absence of processor-authentication mechanisms. To defend against such attacks, in this paper, we present PA-Boot, the first formally verified processor-authentication protocol for secure boot in multiprocessor systems. PA-Boot is proved functionally correct and is guaranteed to detect multiple adversarial behaviors, such as processor replacements and man-in-the-middle attacks. The fine-grained formalization of PA-Boot and its fully mechanized security proofs are carried out in the Isabelle/HOL theorem prover with 306 lemmas/theorems and ~7,100 LoC. We further implement in C an instance of PA-Boot. Experiments on the proof-of-concept implementation indicate that PA-Boot can effectively identify boot-process attacks with a considerably minor overhead (4.98% on Linux boot process) and thereby improve the security of multiprocessor systems.
